Machinery

Machinery Details

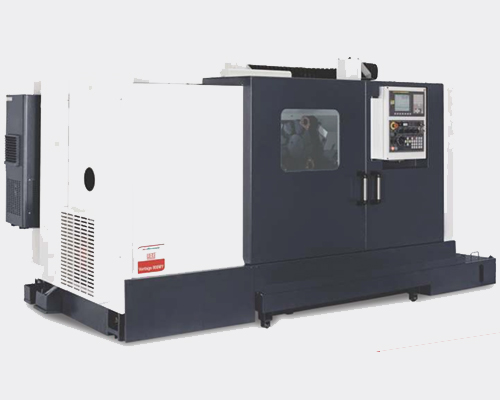

VANTAGE 800 MY

Capacity
Swing Over Bed – 640mm
Swing Over Carriage – 400mm
Maximum Turning Diameter – 400mm
Maximum Turning Length – 800mm
Distance between Centers – 1025mm

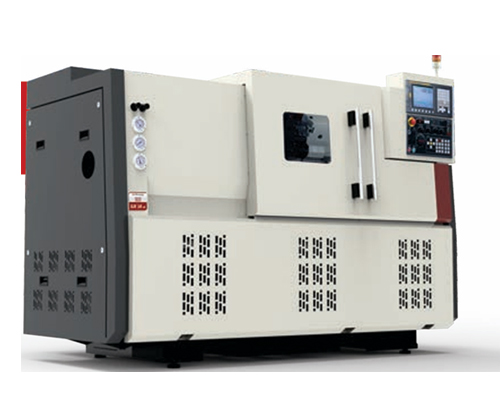

Sje 10 LM/XL

Capacity
Swing Over Bed – 550mm
Distance Between Centers – 615mm
Maximum Turning Dia – 350mm
Between Center Turning Dia – 260/310mm
Maximum Turning Length – 643mm
Max. turning length from chuck jaw face – 525mm

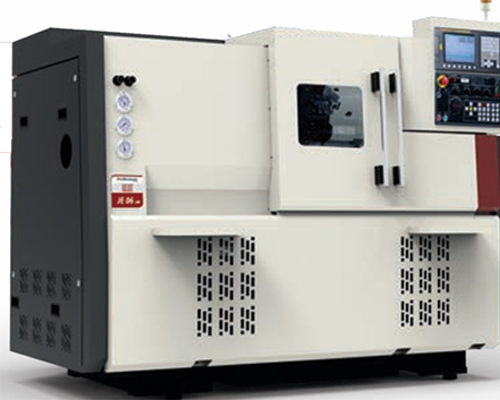

JE 06 LM/XL

Capacity
Swing Over Bed – 550mm
Distance Between Centers – 420mm
Maximum Turning Dia – 320mm
Between Center Turning Dia – 260/310mm
Maximum Turning Length – 400mm
Max. turning length from chuck jaw face – 300mm

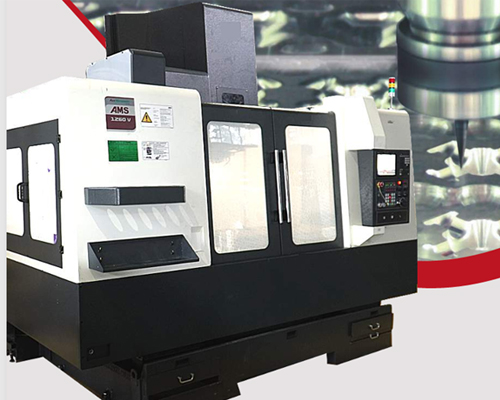

1260V

Capacity
X- axis – 1250mm
Y-axis – 600mm
Z-axis – 600mm
Dist. From spindle face to table top 100-700mm
Table Size – 1400x600mm
Max. Load on table – 1250Kg
Table Height from floor – 1050mm

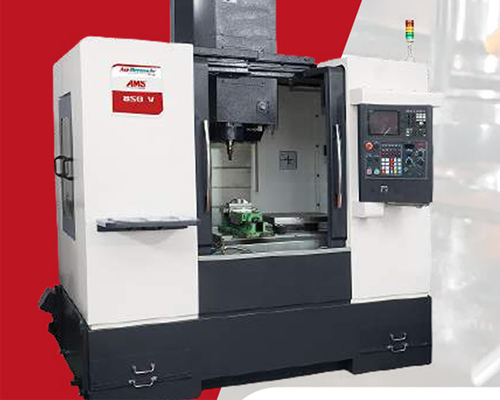

850V

Capacity
X- axis – 800mm
Y-axis – 510mm
Z-axis – 500mm
Dist. From spindle face to table top 100-600mm
Table Size – 1000x510mm
Max. Load on table – 400Kg
Table Height from floor – 920mm

640V

Capacity
X- axis – 650mm
Y-axis – 450mm
Z-axis – 500mm
Dist. From spindle face to table top 100-600mm
Table Size – 800x450mm
Max. Load on table – 400Kg
Spindle Center to Sliding Cover Face – 500mm

800V

Capacity
X- axis – 800mm
Y-axis – 500mm
Z-axis – 500mm
Dist. From spindle face to table top 100-600mm
Table Size – 1000x500mm
Max. Load on table – 600Kg
Spindle Center to Sliding Cover Face – 520mm

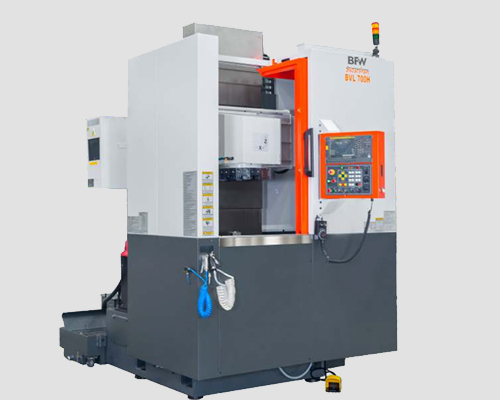

BVL 800H

Capacity
Max Turning Dia x Height – Dia820 x 150mm
Max swing Dia – 1000mm
X Stroke – 475mm
Z Stroke – 860mm

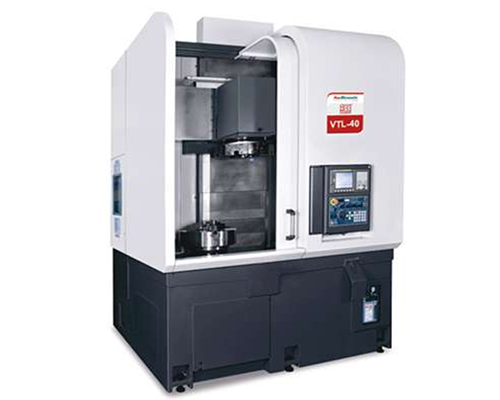

Vtl – 40

Capacity
Swing over Bed – 1000mm
Swing over carriage – 500mm
Maximum Turning Dia – 800mm
Maximum Turning Length – 800mm
